Institute of Sientific Instruments

Measurement of low temperature radiative properties of  materials
 - Emissivity at temperatures from 20 K to 300 K
 - Absorptivity of material at temperature above 4.5 K with respect to the radiation of temperature  TR = 20 K to 300 K

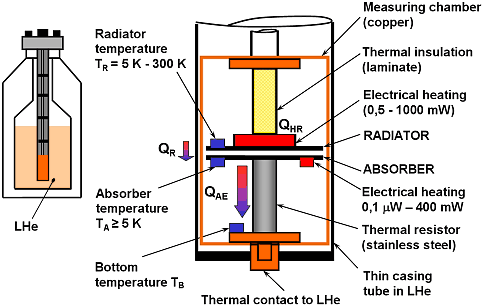

Principle of measurement
Principle
Apparatus

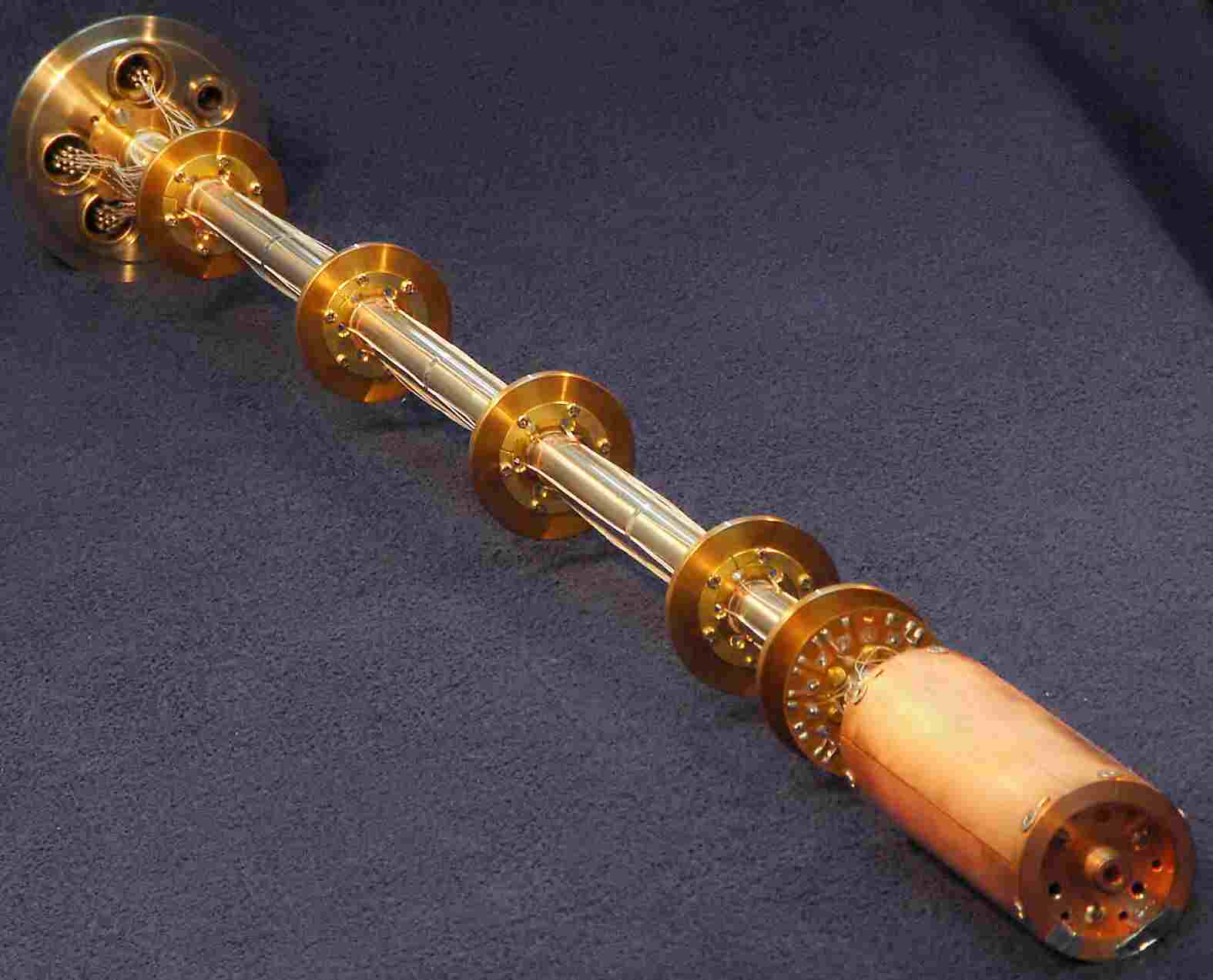

Insert with chamber

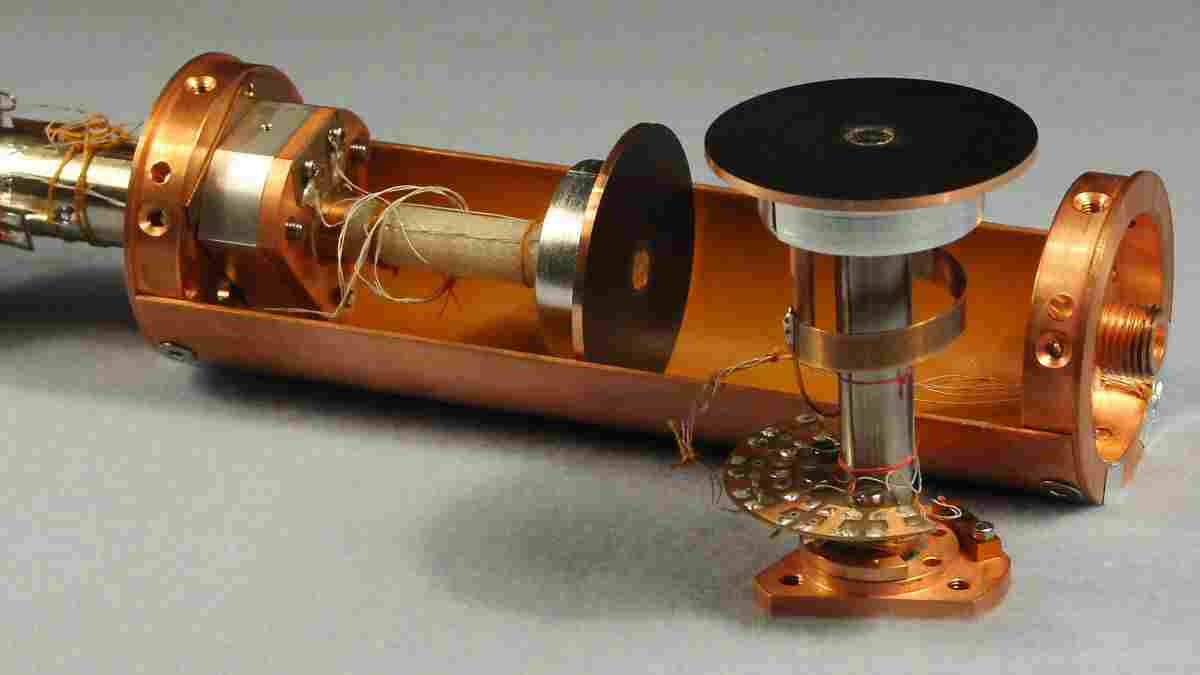

Measurement chamber - sample diam. 40 mm
Measuring chamber


Chemically polished Cu sample
Cu_chem_polished

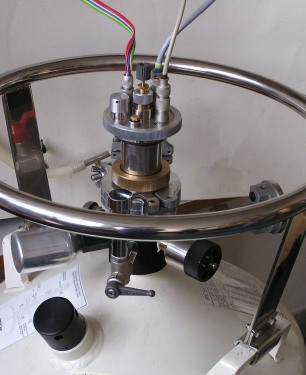

Vacuum casing tube with apparatus
 in LHe Dewar
Dewar_Emister

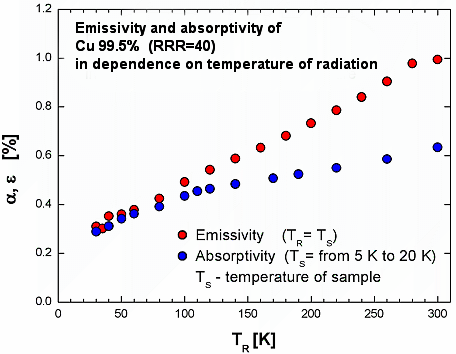

Emissivity and absorptivity of copper
Cu_995

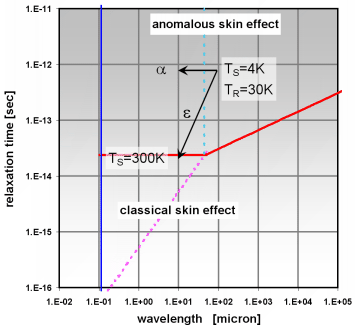

Map of skineffect - Cu
          Map_SE

                 ... for more data:        tomas

Musilova V, Kralik T, Hanzelka P, Srnka A:
Effect of different treatments of copper surface on its total hemispherical  absorptivity bellow 77K.
Cryogenics 47, no 4 (2007), pp. 257-261

Musilova V, Hanzelka P, Kralik T, Srnka A:
Low temperature radiative properties of materials used in cryogenics.
Cryogenics  45, no 8 (2005), pp. 529-536
